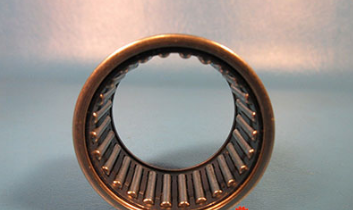

IKO Number: TA 5520Z

Mass (Ref.): 116 g

Assembled inner ring: IRT 5020-1

Fw: 55 mm

D: 67 mm

C: 20 mm

Shaft dia. h6max.: 55 mm

Shaft dia. h6min.: 54.981 mm

Housing bore dia. J7max.: 67.018 mm

Housing bore dia. J7min.: 66.988 mm

Dynamic, C: 39.6 kN

Static, C0: 69.7 kN

Allowable rotational speed: 5500 rpm
